Product Specifications
| Specification | Details |
|---|---|
| Brand | EVE |
| Model | LFP314 |
| Cell Type | Prismatic Battery Cell |
| Battery Chemistry | LiFePO4 |
| Nominal Voltage | 3.2V |
| Maximum Charge Voltage | Approximately 3.65V, subject to official datasheet |
| Rated Capacity | 314Ah |
| Nominal Energy | Approximately 1004.8Wh / 1.005kWh |
| Terminal Type | Threaded Screw Terminal |
| Cell Housing | Aluminum Prismatic Case |
| Rechargeable | Yes |
| Sales Unit | Per Cell |
| Accessories | Busbars and terminal hardware subject to order confirmation |

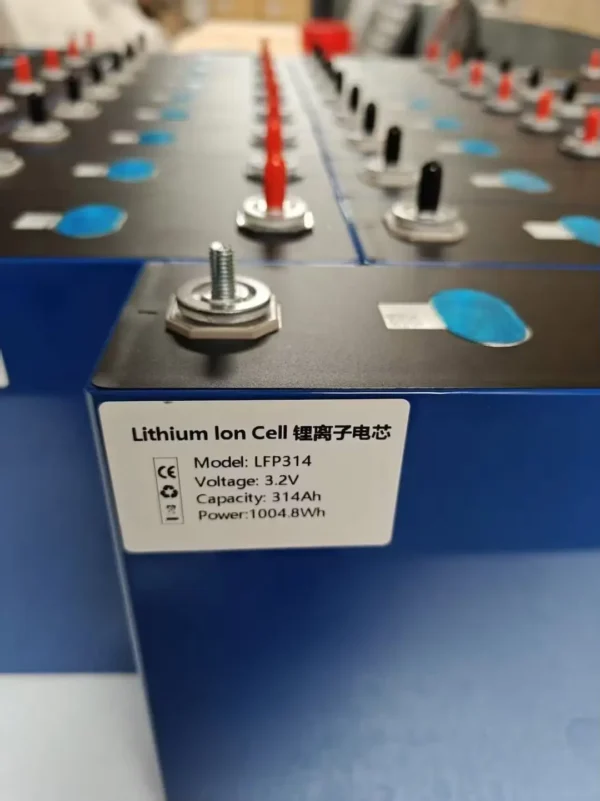

EVE LFP314 3.2V 314Ah LiFePO4 Prismatic Battery Cell
1. Product Overview
The EVE LFP314 is a large-capacity rechargeable LiFePO4 prismatic battery cell designed for professional energy storage systems and lithium battery pack manufacturing.
With a nominal voltage of 3.2V and a rated capacity of 314Ah, each cell provides approximately 1004.8Wh of nominal energy, equal to approximately 1.005kWh per cell.
The EVE LFP314 is suitable for battery pack manufacturers, solar energy companies, energy storage integrators, RV battery suppliers, marine power companies, distributors and wholesale battery buyers.
2. Key Features
- 314Ah large-capacity LiFePO4 prismatic cell
- Approximately 1004.8Wh nominal energy per cell
- Approximately 1.005kWh energy per cell
- Stable voltage output
- Good thermal stability
- Reliable cell consistency
- Suitable for series and parallel battery configurations
- Designed for professional energy storage battery packs
- Capacity and internal resistance matching available
- Wholesale supply and international shipping available
3. Suitable Applications
Home Energy Storage Systems
The EVE LFP314 may be used in professionally designed residential battery systems for solar energy storage, backup power and reduced grid dependence.
Solar Energy Storage
The cell can be integrated into solar battery banks when the system voltage, inverter, BMS, charging parameters and thermal design are correctly matched.
Commercial and Industrial Energy Storage
Multiple EVE 314Ah cells may be assembled into large-capacity modules for commercial energy storage cabinets, industrial backup systems and peak-shaving applications.
RV and Camper Battery Systems
The large capacity makes the cell suitable for professionally designed RV and camper battery packs requiring extended operating time.
Marine Battery Systems
The cell may be used in compatible marine battery systems when suitable insulation, waterproofing, vibration protection and battery management are provided.
Off-Grid and Backup Power
The EVE LFP314 may be used in off-grid power systems, telecom backup power, UPS systems and emergency energy storage modules.
4. Professional Battery Pack Assembly
- Capacity and internal resistance matching
- Cell consistency testing
- Series and parallel battery configuration
- Busbar and terminal connection
- BMS selection and integration
- Cell insulation and compression structure
- Temperature monitoring
- Battery enclosure and thermal-management design
5. Wholesale Supply and Customization
We supply EVE LiFePO4 prismatic cells to battery pack manufacturers, energy storage companies, solar installers, distributors and industrial equipment manufacturers.
- Wholesale EVE battery cell supply
- Matched cell groups available upon request
- Busbars, terminal screws and accessories
- Customized battery pack assembly
- BMS and battery enclosure solutions
- Technical and transportation documents
- International lithium battery shipping solutions
Please contact us for current pricing, minimum order quantity, stock availability, cell grade, production batch, included accessories and shipping options.
6. Important Notice
This is an industrial LiFePO4 battery cell intended for professional battery pack assembly. A compatible BMS, LiFePO4 charger, insulated busbars, secure terminal connections and a suitable cell compression structure are required.
The exact model designation, dimensions, weight, internal resistance, charging current, discharge current, cycle life, operating temperature and certification status must be confirmed according to the official EVE datasheet and actual production batch.
Frequently Asked Questions
1. What is the EVE LFP314?
The EVE LFP314 is a 3.2V 314Ah LiFePO4 prismatic battery cell designed for professional energy storage and large-capacity battery pack assembly.
2. How much energy does one EVE LFP314 cell store?
One cell provides approximately 1004.8Wh of nominal energy, equal to approximately 1.005kWh.
3. Can it be used in solar and home energy storage?
Yes. It may be used with a compatible BMS, inverter, LiFePO4 charger, cell compression structure and thermal-management system.
4. Are matched cells and accessories available?
Matched cell groups, busbars, terminal hardware and battery pack accessories may be supplied. Package contents should be confirmed before ordering.
5. Are technical and transportation documents available?
Technical datasheets, UN38.3 reports, MSDS documents and international shipping solutions may be available depending on the production batch, quantity and destination.
