EVE LF334 3.2V 334Ah LiFePO4 Battery Cell

Product Specifications

Specification	Details
Brand	EVE
Model	LF334
Cell Type	Prismatic Battery Cell
Battery Chemistry	LiFePO4
Nominal Voltage	3.2V
Maximum Charge Voltage	Approximately 3.65V, subject to official datasheet
Rated Capacity	334Ah
Calculated Nominal Energy	Approximately 1068.8Wh / 1.069kWh
Energy Shown on Product Label	1075Wh, subject to official datasheet confirmation
Terminal Type	Threaded Screw Terminal
Cell Housing	Aluminum Prismatic Case
Rechargeable	Yes
Sales Unit	Per Cell
Accessories	Busbars and terminal hardware subject to order confirmation

EVE LF334 3.2V 334Ah LiFePO4 Prismatic Battery Cell

1. Product Overview

The EVE LF334 is a large-capacity rechargeable LiFePO4 prismatic battery cell designed for professional energy storage systems and lithium battery pack manufacturing.

With a nominal voltage of 3.2V and a rated capacity of 334Ah, the calculated nominal energy is approximately 1068.8Wh, equal to approximately 1.069kWh per cell.

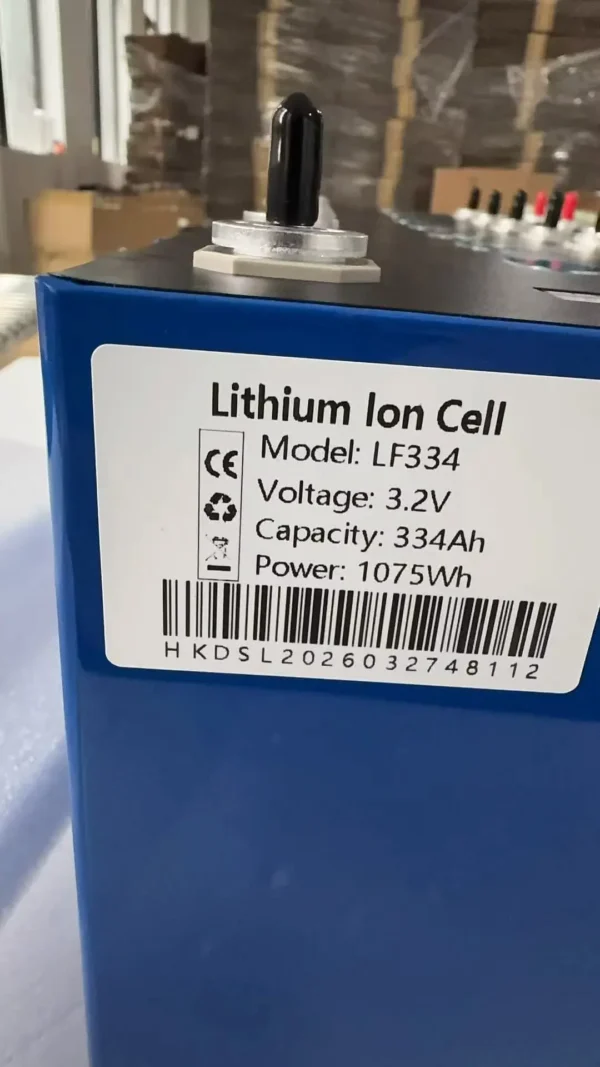

The product label shown in the image states 1075Wh. Because this value differs slightly from the calculated energy, the final nominal energy should be confirmed according to the official EVE LF334 datasheet and actual production batch.

The EVE LF334 is suitable for battery pack manufacturers, solar energy companies, energy storage integrators, RV battery suppliers, marine power companies, distributors and wholesale battery buyers.

2. Key Features

• 334Ah large-capacity LiFePO4 prismatic cell
• Approximately 1068.8Wh calculated nominal energy
• Approximately 1.069kWh energy per cell
• Stable voltage output
• Good thermal stability
• Reliable cell consistency
• Suitable for series and parallel battery configurations
• Designed for professional energy storage battery packs
• Capacity and internal resistance matching available
• Busbars and terminal hardware available subject to confirmation
• Wholesale supply and international shipping solutions available

3. Suitable Applications

Home Energy Storage Systems

The EVE LF334 may be used in professionally designed residential battery systems for solar energy storage, backup power and reduced dependence on the utility grid.

Solar Energy Storage

The cell can be integrated into solar battery banks when the system voltage, inverter, BMS, charging parameters and thermal-management system are correctly matched.

Commercial and Industrial Energy Storage

Multiple EVE LF334 cells may be assembled into large-capacity modules for commercial energy storage cabinets, industrial backup systems, load shifting and peak-shaving applications.

RV and Camper Battery Systems

The 334Ah capacity makes the cell suitable for professionally designed RV and camper battery packs requiring long operating time and dependable energy storage.

Marine Battery Systems

The cell may be used in compatible boat and marine battery systems when suitable insulation, waterproofing, vibration protection and battery management are provided.

Off-Grid and Backup Power

The EVE LF334 may be used in off-grid power systems, telecom backup power, UPS systems and emergency energy storage modules.

4. Professional Battery Pack Assembly

The EVE LF334 is intended for professional LiFePO4 battery pack production processes, including:

• Capacity and internal resistance matching
• Cell consistency testing
• Series and parallel battery configuration
• Busbar and terminal connection
• BMS selection and integration
• Cell insulation and compression structure
• Temperature monitoring
• Battery enclosure and thermal-management design

5. Wholesale Supply and Customization

We supply EVE LiFePO4 prismatic cells to battery pack manufacturers, energy storage companies, solar installers, distributors and industrial equipment manufacturers.

• Wholesale EVE battery cell supply
• Matched cell groups available upon request
• Busbars, terminal screws and accessories
• Customized battery pack assembly
• BMS and battery enclosure solutions
• Technical and transportation documents
• International lithium battery shipping solutions

Please contact us for current pricing, minimum order quantity, stock availability, cell grade, production batch, included accessories and shipping options.

6. Important Notice

This is an industrial LiFePO4 battery cell intended for professional battery pack assembly. A compatible BMS, LiFePO4 charger, insulated busbars, secure terminal connections and a suitable cell compression structure are required.

Do not short-circuit, reverse polarity, puncture, crush, overcharge, over-discharge or expose the cell to fire or excessive heat.

The exact dimensions, weight, internal resistance, charging current, discharge current, cycle life, operating temperature, nominal energy and certification status must be confirmed according to the official EVE LF334 datasheet and actual production batch.

Frequently Asked Questions

1. What is the EVE LF334?

The EVE LF334 is a 3.2V 334Ah LiFePO4 prismatic battery cell designed for professional energy storage and large-capacity battery pack assembly.

2. How much energy does one EVE LF334 cell store?

Based on 3.2V and 334Ah, the calculated nominal energy is approximately 1068.8Wh, equal to approximately 1.069kWh. The product label shown in the image states 1075Wh, so the final value should be confirmed using the official datasheet.

3. Can the EVE LF334 be used in solar and home energy storage?

Yes. It may be used in professionally designed solar and home energy storage systems with a compatible BMS, inverter, LiFePO4 charger, compression structure and thermal-management system.

4. Are matched cells and accessories available?

Matched cell groups, busbars, terminal hardware, BMS units and battery pack accessories may be supplied. Exact package contents should be confirmed before ordering.

5. Are technical and transportation documents available?

Technical datasheets, UN38.3 reports, MSDS documents and international shipping solutions may be available depending on the production batch, order quantity and destination.
