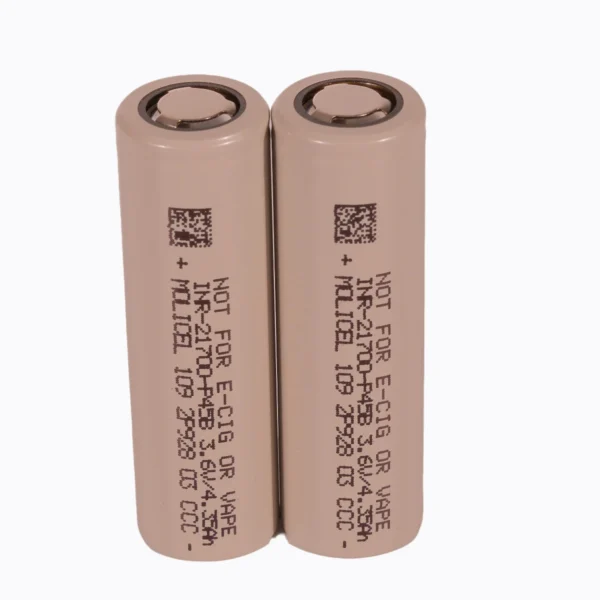

Molicel INR21700-P45B 3.6V 4500mAh Battery Cell

Molicel INR-21700-P45B 21700 cell: 4.5Ah typical / 4.3Ah minimum. Molicel data sheet v1.4 lists 45A continuous discharge with an 80°C cell-temperature cut-off and 13.5A maximum charge with a 70°C cut-off. Reference only; confirm the approved lot document.

Project matching checklist
ApplicationShare operating conditions and intended use.Technical scopeConfirm voltage, current and compatible components.Supply routeConfirm documents, availability and delivery country.
Request technical matching

Molicel INR-21700-P45B is a 21700 rechargeable lithium-ion cell. Molicel’s product page lists 3.6V nominal voltage, 4.5Ah typical capacity and 45A discharge current. Its Version 1.4 data sheet supplies additional minimum-capacity and cut-off context below. These manufacturer references do not prove that a specific cell offered by SuFeng matches that revision.

Molicel INR-21700-P45B: manufacturer data-sheet reference

Item Version 1.4 reference
Model / format INR-21700-P45B / cylindrical 21700
Nominal voltage 3.6V
Capacity / energy 4.5Ah typical (16.2Wh); 4.3Ah minimum (15.5Wh)
Charge / discharge voltage 4.2V charge; 2.5V discharge endpoint in the data sheet
Standard charge current 4.5A
Maximum charge current 13.5A with a 70°C cut-off
Continuous discharge current 45A with an 80°C cell-temperature cut-off
Ambient temperature range Charge: 0°C to 60°C; discharge: -40°C to 60°C
Typical impedance AC: 7mΩ at 30% SOC; DC: 15mΩ at 50% SOC
Maximum dimensions 21.55mm diameter × 70.15mm height

The 45A figure is tied to the stated 80°C cell-temperature cut-off, not an unconditional pack current. Thermal design, duty cycle, interconnects, enclosure and protection remain system-level responsibilities. The manufacturer product page lists 69g maximum weight while the Version 1.4 data sheet lists 70g maximum; because the references differ, weight is omitted here pending a lot-matched approved document.

P45B and P50B are distinct choices

Molicel’s linked Version 1.1 P50B data sheet lists 5.0Ah typical / 4.85Ah minimum and 60A continuous discharge with an 80°C cut-off. The P45B Version 1.4 sheet lists 4.5Ah typical / 4.3Ah minimum and 45A with an 80°C cut-off. These are manufacturer reference values, not a recommendation or confirmation that either offered lot matches its cited revision. Compare the approved lot documents, energy need, current profile and thermal design before selection. See the Molicel INR-21700-P50B product record.

What to confirm for a B2B order

  • Exact cell marking, revision/lot identity, condition or grade, and requested quantity.
  • Approved data sheet, charge/discharge limits, temperature cut-offs and acceptance criteria for the project.
  • Application, continuous/peak load profile, cooling and protection requirements.
  • Destination, packaging and the shipment-specific documents required for the inquiry.

Share the target quantity, application and destination for technical matching. Availability, lot allocation, documents and shipping route are confirmed for the specific inquiry; this page is not a live stock count. Request a technical match and quotation or browse 21700 cells.

Molicel INR-21700-P45B data sheet (Version 1.4) · Molicel official product page

Manufacturer reference data may change by revision and is not a performance guarantee or lot verification. Confirm the approved specification and batch records before purchase or pack validation.

Specification statusConfirm exact model specifications before ordering.

Documents available on request

Ask our team to confirm the CE, UN38.3, MSDS, RoHS and transport documents applicable to the exact model and shipment.
